Parco Innovation products Single and Three phase feeders

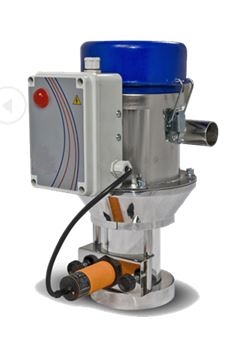

Feed venturi
This method of handling is widely used in the industry for the transport of granules, and products were molded small-sized(short). The travel(movement) of the product is realized by using a draft by pressure.
Description:
- The material(subject) to be transported enters in the course of air of pressure by a unity(unit) of food(supply) Venturi as regards the small debits(flows).
- The traffic(circulation) of air is generated by a ventilator Multiair which is situated in front of the unity(unit) of food(supply) and push actually product in the conduit of transfer.
Characteristics:
- 230 V Mono-20 W
- Compressed air 5/6 Bars
- Transfer granules Max 30 kg / hour
- Distance from 1 to 5 meters
- Possibility of blank(virgin), coloring transfer, rebroyé or loaded(charged) material(subject) fiberglass
- Height: 450 mm, Diameter 160mm

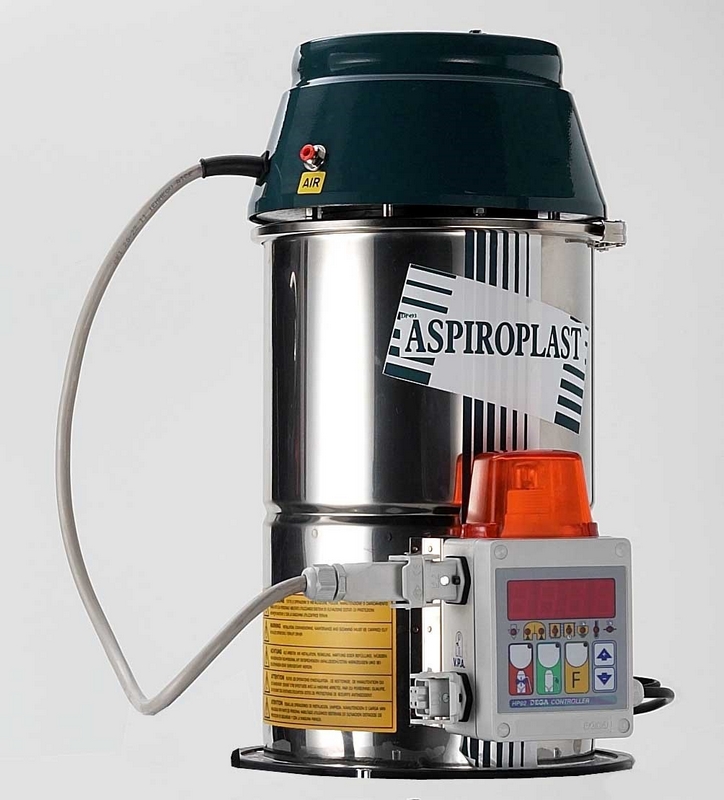

Feed single-phase pneumatic
The single-phase pneumatic charger DEGA allows the automatic food of hoppers séchantes, of doseres or machines of transformation the maximal flow of which is 170 kg/hour (according to application) and with a temperature of lower material in 60°C.
Types:
- PIXIE (flow: 20 kg/hour)
- AS70 (flow: 100 kg/hour)
- AS150 (flow: 170 kg/hour)
Characteristics:
- Stainless hoppers
- Coal-based single-phase engine,
- Removable filter,
- Lid with magnetic detector of position,
- Décolmatage of the filter by jet of compressed air (Except PIXIE)
- Flexible tube 3 meters with plait of mass,
- Bright alarm (...)
- In compliance with the standards IT.

Pneumatic feed three-phase
The three-phase pneumatic charger DEGA allows the automatic food(supply) of séchantes hoppers, measuring glasses or machines of transformation(processing) the maximal debit(flow) of which is 1400 kg / hour (according to application) and with a temperature of lower material(subject) in 60°C.
Types(Chaps):
- AT400 (debit(flow): 5 in 400 kg / hour)
- AT600 (debit(flow): 30 in 600 kg / hour)
- AT900 (debit(flow): 80 in 900 kg / hour)
- AT1200 (debit(flow): 80 in 1400 kg / hour).
Characteristics:
- Stainless hoppers,
- Three-phase engine 0.75 in 11 KW
- Removable filter,
- Lid with magnetic detector of position,
- Décolmatage of the filter by jet of compressed air,
- Cane of adjustable inhalation(pursuit), aluminum,
- Flexible tube with plait of mass,
- Frame supporting(bearing) vacuum pump and electric casket of command(order),
- Bright alarm,
Option:
- Centralized filtration
- Mini centralized

Proportional Valve
The proportional gates
allow the dosage of two products. Generally used in the dosage of the virgin
and the crushed, the times of inhalation are adjustable to measure both
products.
Characteristics: - 2
Arrivals material
- 2 Jacks double - effect
with double lid.
- Case of command
integrated into the charger or the independent, - Diameter 40, 50 and 60.
