Parco Innovation products Flexibal Mechanical spiral conveyors
TRM001.UK

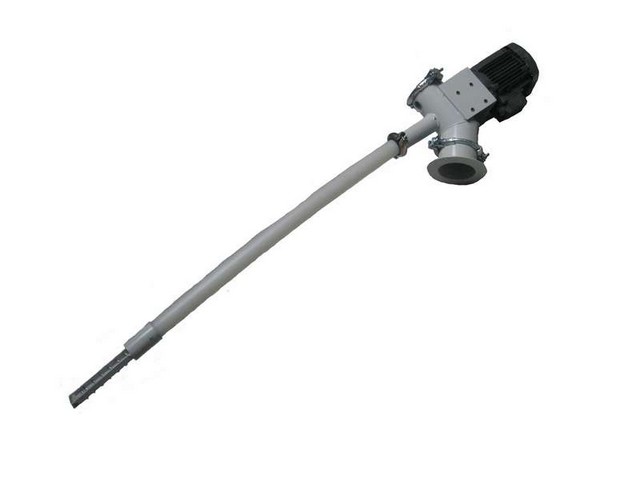

Mechanical charger
Mechanical charger
The flexible mechanical chargers allow an automatic food of the powder, the granules or the mixture contents in a silo, a hopper or a unity of dosage.
Types ed EC: following model flow
- E34: type ED20 kg/hour, typifies EC 25 kg/hour
- E43: type Ed 80 kg/hour, typifies EC 120 kg/hour
- E51: type Ed 250 kg/hour, typifies EC 450 kg/hour
- E63: type Ed 600 kg/hour, typifies EC 1200 kg/hour
- E80: type Ed 1200 kg/hour, typifies EC 3000 kg/hour.
Characteristics:
- Homogenization of the mixture during the transfer: no segregation between the various materials,
- No use of air, thus no rejection of dust in the workshop,
- Very big robustness due to the design of the mechanical charger and to the employment of components of 1st quality,
Description:
- Three-phase electric engine on 1500
Steel spiral handled(treated) with fast coupler,
- Taken(brought) out produced in two positions (180 or 45 degrees) with detector integrated(joined) capacitif,
- Mounting flange on lid hopper with necklace with fast unbolting,
- Sheathe flexible polyamide,
- Entered produces of type(chap) ED, EC,
