Parco Innovation products Heavy duty granulator
GSH001.UK

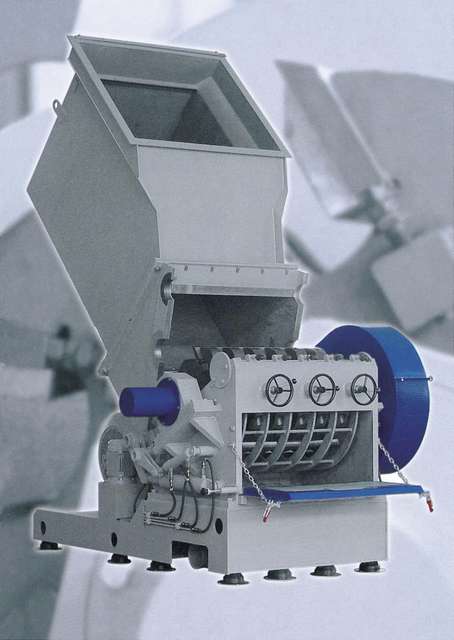

High productivity granulator for recycler GSH001
Granulators from the range
GSH answer the biggest requirements in term of grinding.
Granulators for recycling unities, they guarantee a high flow for all applications while remaining economical in power consumption.
Strong construction.
Sound-proofing in option. Emptying in big bag or silo.
Dust extractor.
Rotor open or closed according to the applications.
Characteristic :
Granuling chamber : 635 x 615 mm to 1150 x 940 mm
Rotor : diameter 500 to 800 mm
Blades : 10 to 18 movable blades
Adjustment : size of regulation after sharpening (apart from the machine)
Hopper : straight or special
Emptying : turbine bag emptying
Motor : 45 to 132 kW, 400 V - 50 Hz – three-phase
Electric : in compliance with the current standard VDE
Option :
Loading conveyor with or without metal particle detection tunnel.
Dust extractor.
Emptying in 2 big bags.
Driving.
Granulators for recycling unities, they guarantee a high flow for all applications while remaining economical in power consumption.
Strong construction.
Sound-proofing in option. Emptying in big bag or silo.
Dust extractor.
Rotor open or closed according to the applications.
Characteristic :
Granuling chamber : 635 x 615 mm to 1150 x 940 mm
Rotor : diameter 500 to 800 mm
Blades : 10 to 18 movable blades
Adjustment : size of regulation after sharpening (apart from the machine)
Hopper : straight or special
Emptying : turbine bag emptying
Motor : 45 to 132 kW, 400 V - 50 Hz – three-phase
Electric : in compliance with the current standard VDE
Option :
Loading conveyor with or without metal particle detection tunnel.
Dust extractor.
Emptying in 2 big bags.
Driving.
|
|
HEL450.UK
Serie 450
Width
600-1200 mm
Diameter of rotor
450 mm
Engine power
22-75 kW
Number of movable knives
3-5
Number of fixed knives
2-4
Cutting speed
490 t/min
Weight
Env. 1,4-4 t
Crushing rate
Env. 600-1400 kg/h
Nominal Weight
De 1500-5400 kg
600-1200 mm
Diameter of rotor
450 mm
Engine power
22-75 kW
Number of movable knives
3-5
Number of fixed knives
2-4
Cutting speed
490 t/min
Weight
Env. 1,4-4 t
Crushing rate
Env. 600-1400 kg/h
Nominal Weight
De 1500-5400 kg
| |
HEL600.UK
Serie 600
Width
600-1000-1500 mm
Diameter of the rotor
600 mm
Engine power
37-110 kW
Number of movabled knives
3-7
Number of fixed knives
2-4
Cutting speed
490 t/min
Weight
Env. 1,4-4 t
Crushing Rate
Env. 800-2500 kg/h
Nominal Weight
De 2000-11000 kg
600-1000-1500 mm
Diameter of the rotor
600 mm
Engine power
37-110 kW
Number of movabled knives
3-7
Number of fixed knives
2-4
Cutting speed
490 t/min
Weight
Env. 1,4-4 t
Crushing Rate
Env. 800-2500 kg/h
Nominal Weight
De 2000-11000 kg
| |
