Parco Innovation products gravimetric dosing system
DOP001.UK

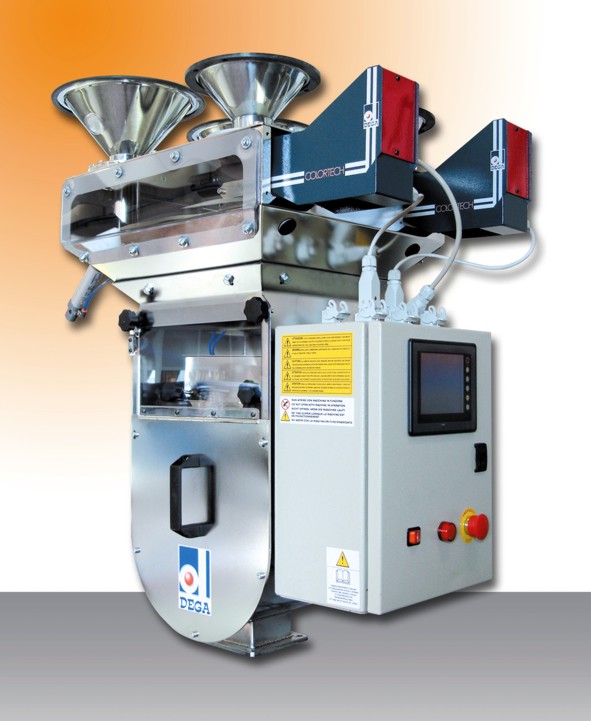

Weight dosage multiproduces
The weight doseres of the range DEGA guarantee a very big precision. Dosage from 2 to 6 products until a flow of 1 500Kg/hour. Every product is weighed by one or several digital sensors. All the data are posted and stored.
Precision by the gram!
Types:
- GDM250 (maxi Dèbit: 250 kg/hour)
- GDM650 (maxi Dèbit: 650 kg/hour)
- GDM800 (maxi Dèbit: 800 kg/hour)
- GDM1500 (maxi Dèbit: 1500 kg/hour)
Characteristics:
- 6 maxi products as standard - Hoppers with fast draining - System of cleaning by compressed air - Dosage by lid anti coincenment
- Dosage small flow (15g by venturi
- Digital sensor - Hopper weighed in polished stainless steel mirror with 2 jacks - conical Mixer in stainless steel
- Touch-sensitive screen of programming.
- 1000 recipes in memory, traceability
|
|
DOP002.UK

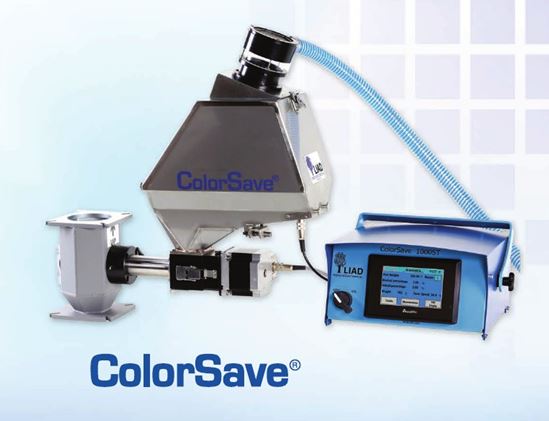

Colorator weight
WEIGHT COLORATOR:
The weight colorator LIAD allows to measure with a very big precision colouring agents and additives. Easily washable, he(it) guarantees quality rooms(parts,plays) and earnings(gain) mattering on the consumptions of colouring agents. Characteristics: weight Dosage by dépesée Dosage by screw ( Various models) of some grams a 80 kg / hour. Options: alarm, regulation of speed. Regulated rein of assembly(editing), display(visualization) on PC.
| |
DOP003.UK

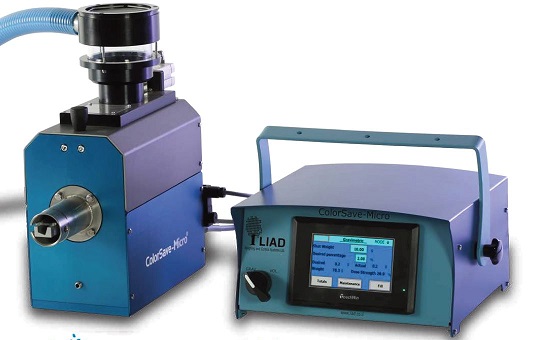

Micro colorator weight
| |
DOP004.UK

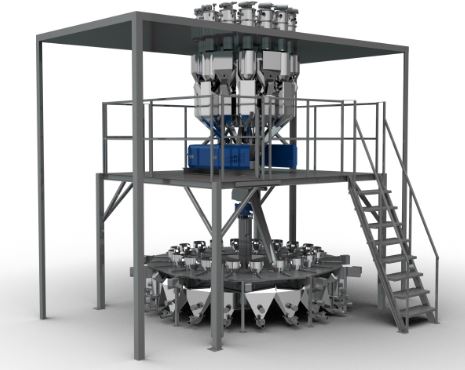

BlendSave weight dosage multiproduces
Do not hesitate to consult the blendsave brochure and contact us for more information !
| |
DOP006.UK

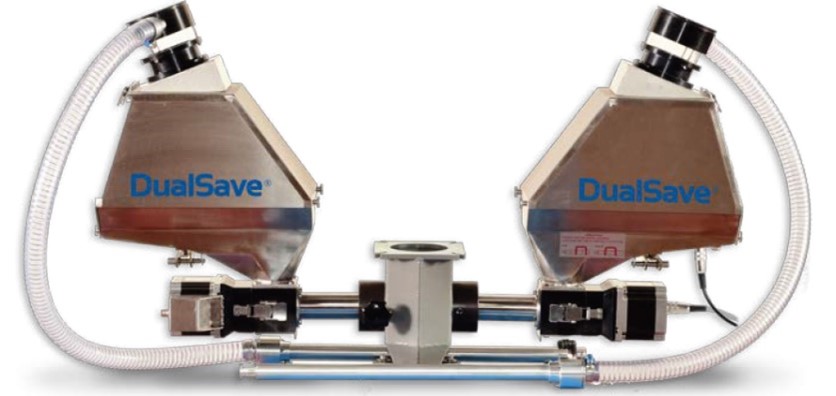

Colorator DUALSAVE
DualSave is a dosing system capable of regulating 2 feeders connected to the same media with a single control unit.
Utilising the design and algorithm properties based on the LIAD "ColorSave" single dosing system, "Dualsave" ensures consistent feeding with a wide variety of materials.
DualSave can be configured in gravimetric or volumetric mode and can be used for injection, extrusion or blow moulding.
Benefits of DualSave:
- Unprecedented accuracy and precision
- Intuitive control unit
- Production cost savings
- Proven quality of finished product
- Big reduction in scrap
- Contains over 500 recipes, quick production changeover
- Quick and easy screw replacement
- Able to combine gravimetric and volumetric systems
- Dye compensation using grinded material
DUALSAVE COMPENSATION SYSTEM:
The DualSave controller contains an integrated system called "Compensation" which can be used when one system is volumetric and feeds "Grind" while the other system feeds the dye in gravimetric or volumetric mode.
As the grinded material already contains dye, it is possible to reduce the amount of dye on the second system, thus saving production costs.
For example, if a recipe requires 5% dye on one system and 20% grind on the second, DualSave automatically reduces the dye to 4%. In the same way, increasing the grind to 40% will reduce the dye to 3%.
The use of a level sensor on the grind hopper will ensure that as soon as all the grind is used, the dye percentage will automatically return to 5%.
Features:
Hopper volume 3/5/10 litres with gravimetric system, 6/12/20 litres with volumetric system
Flow rate ranges 0.2-100 kg/h with gravimetric system 0.02-200 kg/h with volumetric system
Motor Powerful stepper motor
Display 7" colour touch screen
Input signals - Injection Dry contact for synchronisation with plasticizing cycle, optional dry contact for synchronisation with injection cycle
Input signals - Extrusion Dry contact for synchronisation with extruder on/off, synchronisation with 0-10V analogue input or 24v digital tachometer
Input signals - Blow moulding Dry contact for synchronisation with extruder on/off, dry contact for synchronisation with moulding cycle
Recipes 500
Modbus TCP/IP communication included for injection and blow moulding applications, optional for extrusion
Weighing cell 15 kg for 3 or 5 litre volumes, 30 kg for 10 litre volumes. Temperature compensation
Loading Optional venturi loading
Mounting and drive Mounting with adapter flange, screw drive
Alarm outputs NO or NC dry contact, 24V/30mA max.
Power supply 100-240v, 200W, 50/60hz
