Les produits Parco Innovation Sound proof granulator
GSC001.UK

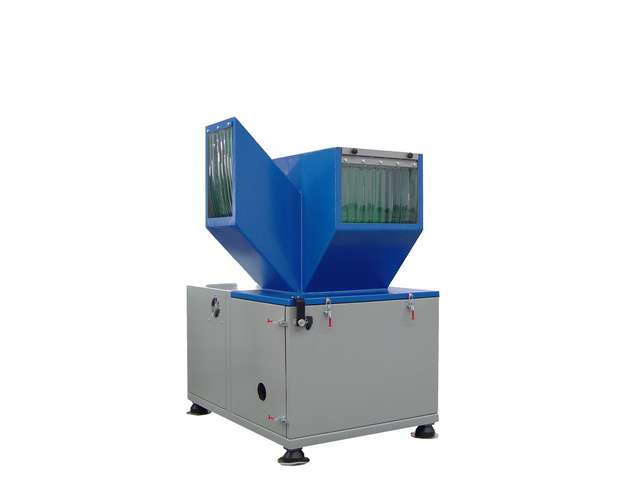

Soundproofed centralised granulator GSC001
The high speed granulators of
the GSC range have been designed specifically for applications in the
centralised grinding injection parts, the blow molded parts such as bottles or profiles.
Strong construction et designed for easy cleaning.
Standard soundproofing, emptying fan.
Rotor opened to take voluminous pieces.
Characteristic:
Granuling chamber : 400 x 290 mm to 720 x 1200 mm
Rotor : diameter 300 to 700 mm
Blades : 3 movable blades
Adjustment : size of regulation after sharpening (apart from the machine)
Hopper : straight, angled or special
Emptying : turbine bag emptying
Motor : 5.5 to 75 kW, 400 V - 50 Hz – three-phase
Electric : in compliance with the current standard VDE
Option :
Loading conveyor with or without metal particle detection tunnel.
Dust extractor.
Emptying in 2 big bags.
Driving.
Strong construction et designed for easy cleaning.
Standard soundproofing, emptying fan.
Rotor opened to take voluminous pieces.
Characteristic:
Granuling chamber : 400 x 290 mm to 720 x 1200 mm
Rotor : diameter 300 to 700 mm
Blades : 3 movable blades
Adjustment : size of regulation after sharpening (apart from the machine)
Hopper : straight, angled or special
Emptying : turbine bag emptying
Motor : 5.5 to 75 kW, 400 V - 50 Hz – three-phase
Electric : in compliance with the current standard VDE
Option :
Loading conveyor with or without metal particle detection tunnel.
Dust extractor.
Emptying in 2 big bags.
Driving.
|
|

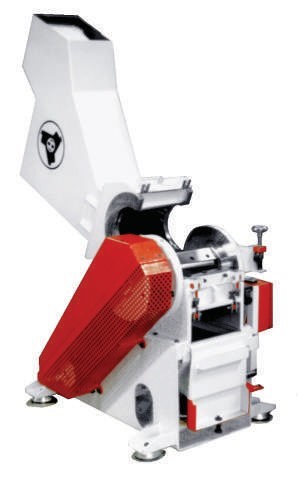

HEL180.UK
Serie 180
Width
240 mm
Diameter of rotor
180 mm
Engine power
3-5,5 kW
Number of movabled knives
3-5
Number of fixed knives
2
Cutting speed
490 t/min
Weight
Env. 400 kg
Crushing rate
Env. 70-120 kg/h
Dimensions (w x L x h)
758 x 1179 x 1675 mm
240 mm
Diameter of rotor
180 mm
Engine power
3-5,5 kW
Number of movabled knives
3-5
Number of fixed knives
2
Cutting speed
490 t/min
Weight
Env. 400 kg
Crushing rate
Env. 70-120 kg/h
Dimensions (w x L x h)
758 x 1179 x 1675 mm
| |
HEL200.UK
Serie 200
Width
240 / 320 / 410 mm
Diameter of rotor
200 mm
Engine power
2,2-5,5 kW
Number of movable knives
3-5
Number of fixed knives
2
Cutting speed
280 t/min
Weight
Env. 340-500 kg
Crushing rate
Env. 50-140 kg/h
Dimensions (w x L x h)
510-683 x 880 x 1300 mm
240 / 320 / 410 mm
Diameter of rotor
200 mm
Engine power
2,2-5,5 kW
Number of movable knives
3-5
Number of fixed knives
2
Cutting speed
280 t/min
Weight
Env. 340-500 kg
Crushing rate
Env. 50-140 kg/h
Dimensions (w x L x h)
510-683 x 880 x 1300 mm
| |
HEL260.UK
Serie 260
Width
240 mm
Diameter of rotor
180 mm
Engine power
3-5,5 kW
Number of movabled knives
3-5
Number of fixed knives
2
Cutting speed
490 t/min
Weight
Env. 400 kg
Crushing rate
Env. 70-120 kg/h
Dimensions (w x L x h)
758 x 1179 x 1675 mm
240 mm
Diameter of rotor
180 mm
Engine power
3-5,5 kW
Number of movabled knives
3-5
Number of fixed knives
2
Cutting speed
490 t/min
Weight
Env. 400 kg
Crushing rate
Env. 70-120 kg/h
Dimensions (w x L x h)
758 x 1179 x 1675 mm
| |
HEL300.UK
Serie 300
Width
300-1000 mm
Diameter of rotor
300-600 mm
Engine power
7,5-75 kW
Number of movabled knives
3-7
Number of fixed knives
2-4
Cutting speed
490 t/min
Weight
Env. 1,4-4 t
Crushing rate
Env. 200-2500 kg/h
300-1000 mm
Diameter of rotor
300-600 mm
Engine power
7,5-75 kW
Number of movabled knives
3-7
Number of fixed knives
2-4
Cutting speed
490 t/min
Weight
Env. 1,4-4 t
Crushing rate
Env. 200-2500 kg/h
| |
