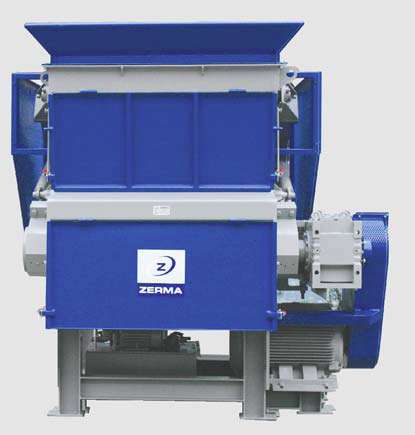

MONO ROTOR DECHICTOR:Shredders can reduce the size of purges or large parts.
The waste is then stored or refined in a GSH high efficiency mill.
The ram pushes the pieces onto the rotor. The blades nibble the pieces until the desired size (from 25 to 100 mm) is obtained.
Robust construction.
Draining by fan or conveyor.Characteristics :Grinding chamber: 1165 x 580 mm to 6420 x 2000 mm
Rotor: Diameter 500 to 800 mm
Blades: 39 to 344 movable blades.
Hopper: Right or Special
Drainage: Turbine or conveyor.
Motor: 37 to 150 kW, 400 V - 50 Hz - three-phase
Electrical: Conforms to current VDE standard
Options:
Loading conveyor with or without metal particle detection tunnel.
|
|
